Overview
Features

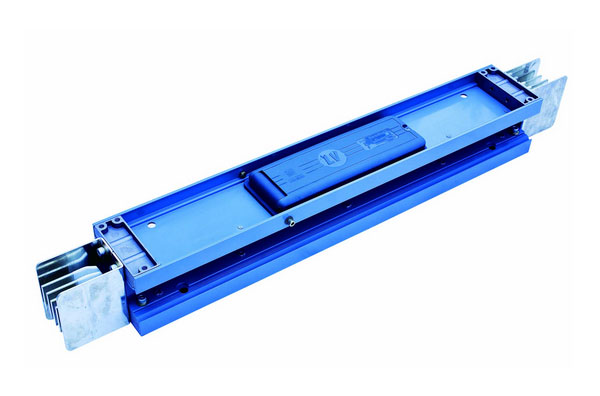

The low-impedance compact busway adopts typical Sandwish structure, the conductors are arranged closely, the overall heat dissipation is good, the structure is compact, and the space occupation is smaller, which is a safe and reliable power distribution system. The product protection level can be up to IP66 according to user requirements. Suitable for three-phase three-wire system, three-phase four-wire system, three-phase five-wire system (shell PE), three-phase five-wire system (PE cross section is half of the phase line), frequency 50~60Hz, rated working voltage to 690V, rated insulation voltage to 1000V, rated working current 250~6300A power supply system. It has the characteristics of stable and reliable, high power distribution efficiency, good heat dissipation, low voltage, mechanical shock resistance and easy installation.
Low impedance compact busway can be widely used in large commercial squares, real estate, stadiums, hospitals, industrial plants and other projects, as a high current efficient transmission and distribution system. The design of the full weak magnetic aluminum alloy shell not only reduces the weight of the busway itself, fully considers that the installation of the shaft is the requirement of high stability of the busway, improves the reliability and applicability of the system, and greatly reduces the influence of large current eddy current and hysteresis loss on the busway system.
The new "two-piece" structure and the optional "3M" powder treatment subvert the design concept of the traditional busway. Elegant classic design and excellent production for users to dedicate high-quality new generation of busway products.
